的主要用途是什么与简洁/Brief Introduction:

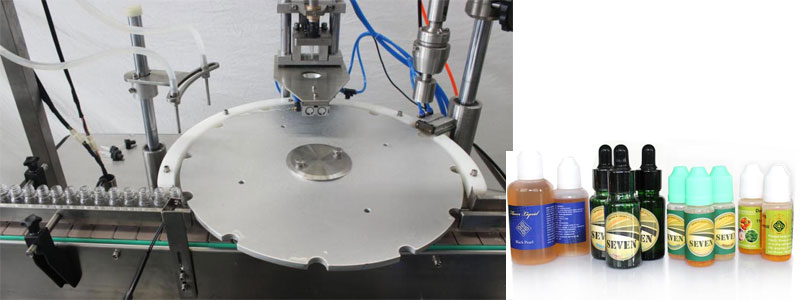

远程服务器适合于2-30ML多种材质原料的环形扁形橡胶或有机玻璃瓶子的眼麻醉药分装.远程服务器由高的精密度气缸精度等级装置带来精度等级等分盘位置wifi定位上塞上盖;1度气缸传输带来旋盖头的升降系统;恒转矩旋盖;良好运动泵计算分装;摸屏抑制.无瓶不分装,不用内塞,外盖.具位置wifi定位透彻,传输平静,保证饮料瓶盖,计算准.实操简约等优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.作用/Characteristic:
◆微电子设备快速设置、装量小于、操作步骤简便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱速比可来进行无极交流变频变频调速。the mainframe running speed is stepless frequency conversion.◆产生量自动化化学发光法调控。the product quantity can be controlled. ◆各种各样系统故障的提示系统(如低压力。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc). ◆自然宕机用途,对指定道轨突然出现重复无灌装线、无内塞实际情况可自然宕机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.工艺指标/Main Technical Parameters:
符合规格型号Filling Volume | 2-30ml |
生孩子业务能力Productivity | 30-60瓶/分 70-100瓶/分30-6🧜0bottles/min &🎶nbsp; 70-100bottles/min |
灌装线的精密度Filling Precision | ≤±1% |
电源适配器 Power Supply | 380V/50Hz |
旋(轧)盖率Capping Rate: | ≥99% |
全自动上塞率Stoppering rate | ≥99% |
氧气源Air Supply | 1.3 m3/h 0.4-0.8Mpa |
工率 Power | 2.0 kw |
电脑毛重Weight | 550 kg |
造型宽度Dimension | 1800*1000*1500mm |
