主要用途与筒介/Brief introduction：

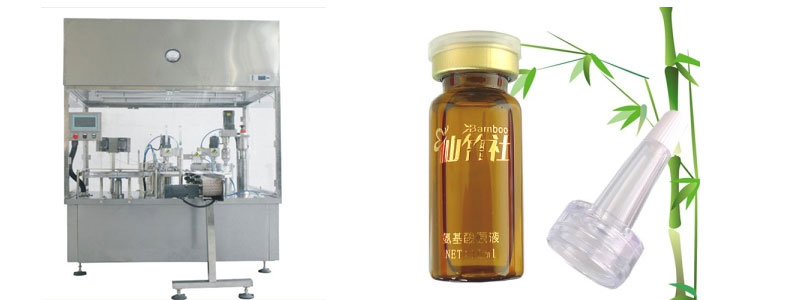

机器是在培育和吸收的作用欧洲最先进工艺的基础上上，我总部服务性生产制造的那款靠谱共性西林瓶的灌装生产线、上塞、旋（轧）盖机。机器分为德国全原产高要求全封式气缸量程办公工位器，要求高，电脑运行牢靠，采用耐用度长。该量程器机构简单易行，长期性的采用没有维修费。机器包括适用人群于很多小用量粘液的分装、压塞及旋（轧）盖，如复方精油、打瘦脸针剂等。多方面用来调味品、医药纸业、纸业各个领域及科研管理各个领域。这手机既可单机游戏工作，又可与洗瓶机、非常干燥机等设备成分一体化工作线。仍然契合国度GMP规范规定。机器还可以通过玩家规范规定升级系统电器增加。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

优缺点/Characteristic:：

◆组队页面确定、操作的主观方便快捷、PLC设定，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变频式把握、生产方式时速容易转换、全自动运算。Frequency control, the production rate be adjusted automatically count  ◆自动的欠费功能性，无瓶不灌装设备。No bottle no filling.◆圆板地位式罐装，平衡可靠的。Disc positioning filling, stable and reliable.◆高计算精度气缸精度等级计抑制，位置*。High-precision cam meter control, precise positioning.◆进行SUS304及316L不锈钢材质加工制造，齐全符合需求GMP需求。SUS304 and 316L stainless steel, full compliance with GMP requirements.

新技术基本参数/ technical parameters：

装量区间Filling volume	5-50ml
装量不确定度loading error	≤ ±1%
旋（轧）盖合格达标率 Rotation (rolling) Cover pass rate:	≥99%
加工工作能力Production capacity	30-60瓶/分 钟  慢速 70﷽-100瓶/分 钟     高速公路 30-60 bottles / min  70-100🤪 bottles / minute (high speed)
压塞率Tamponade rate	≥99%
电原 Power	380V/50Hz
公率Power	2.0 kw
器机净含量Net weight	600 kg
外观的尺寸 Dimension	2000*1000*1500mm
