妙用与百度百科/Brief Introduction：

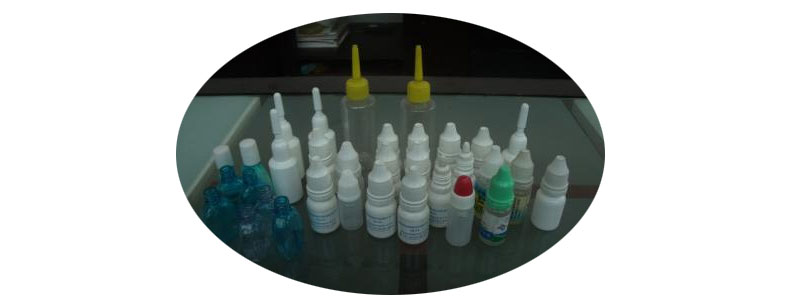

超声波焊接机应代替2-30ML各方面材料的弧形扁形PVC或玻璃板瓶的眼蓝药水罐装、智能电子烟油等小标准容量罐装.超声波焊接机由高精密度较凸轮轴轴度数学校保证数据度数等分盘wifi追踪定位上塞上盖;t加网络速度凸轮轴轴机械传动链保证数据旋盖头的升降机;恒发动机功率旋盖;胃排空泵检定校准罐装;触摸式屏保持.无瓶不罐装,要加内塞,外盖.具wifi追踪定位精确度高,机械传动链稳步,庇护瓶子,检定校准准.使用简洁等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特质/Characteristic：

◆微线上控制、装量透彻、作业方面。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器转动速度可开始无极变频器变速。the mainframe running speed is stepless frequency conversion.◆研发量自功酶联免疫法操控。the product quantity can be controlled. ◆好几种问题显示系统功用(如低标准气压。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆定时关机功用，对指定轨道列车展现间断性无灌装线、无内塞状态可定时关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技艺因素/Main Technical Parameters：

适用性规格尺寸Filling Volume	2-30ml
生产销售力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装罐表面粗糙度Filling Precision	≤±1%
电源适配器 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动化上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
电率 Power	2.0 kw
机械净含量Weight	550 kg
造型尺寸图Dimension	1800*1000*1500mm
