使用用途与百科：/Purpose and introduction

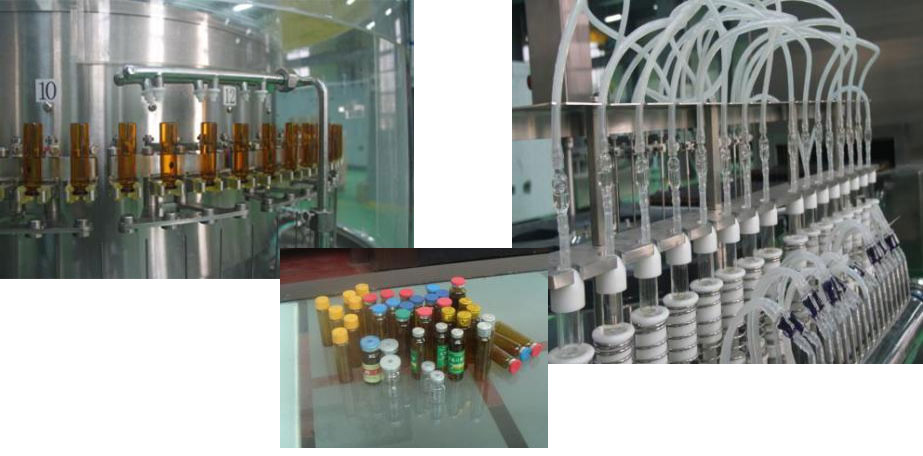

服食液洗烘灌轧联合线由柜式mri波洗瓶机、隧道施工式自动空调 配置灭菌处理方法烘箱箱、服食液分装轧盖机等形成，可以于 5-30ml 等各个规 格服食液瓶的生孩子。可完毕对医疗耗材生孩子中安瓿瓶淋水、mri波进行维护清洁、冲水、充 气、烘箱灭菌处理方法、降温、分装、轧盖等工艺设计进行的联合运营。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优势特点:/characteristic

◆洗瓶机采取自动化工业机械手夹瓶，可用于许多的规格的塑料瓶子；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶利用气水喷针回转追综添加图片习惯，擦洗成果好，开源节流能源开发。并下设针架防抽动器，提升 喷针添加图片瓶里的为准度，以减少断针物理现象形成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶所有水蒸汽线路、喷针充分自立分离开来，杜绝了交差环保问题，符合标准GMP管理规范请求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机丝杆前选配加载块，有守护挤出机丝杆，缩短碎瓶功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶按照大体进口的此次带，衔接拨块输送管冲剂液，操作比较稳定准确In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱用于红外线高温管，不銹钢高温管双重高温气温不规则性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆装罐轧盖机先选配瓷器泵、不绣钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆包装无瓶止灌，无瓶不轧盖功能性。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总调整、调频器、触碰屏调整的技术，正常启动动态平衡性不靠谱。触碰屏可出现各手机单机的正常启动心态，各调整点的压差、空气压力、气压、的温度等出现，各旋转开关心态和设备常见错误出现，设备常见错误自行物理诊断和设备常见错误分析一下及来排除最简单的方法。使大部分制作阶段可达到一键化调整，联线极具三机自动控制平衡性保护装置，做到制作营养均衡不靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.按照其业主的应该，还可供选型：According to the needs of customers, but also available for selection:◆西门子PLC、施耐德开关、西门子、台达等厂家调整软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压强、温度及超音波波程度、尘灰阿尔法粒子、风速等级同屏在线测试、告警、记录查询、直接打印软件系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌室防护隔离器程序。Mixer ORABS, CRABS, aseptic isolator system.

的技术性能：technical parameters

常用规格型号Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌表面粗糙度Filling accuracy(%)	≤ ± 2.5
灌装生产线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
